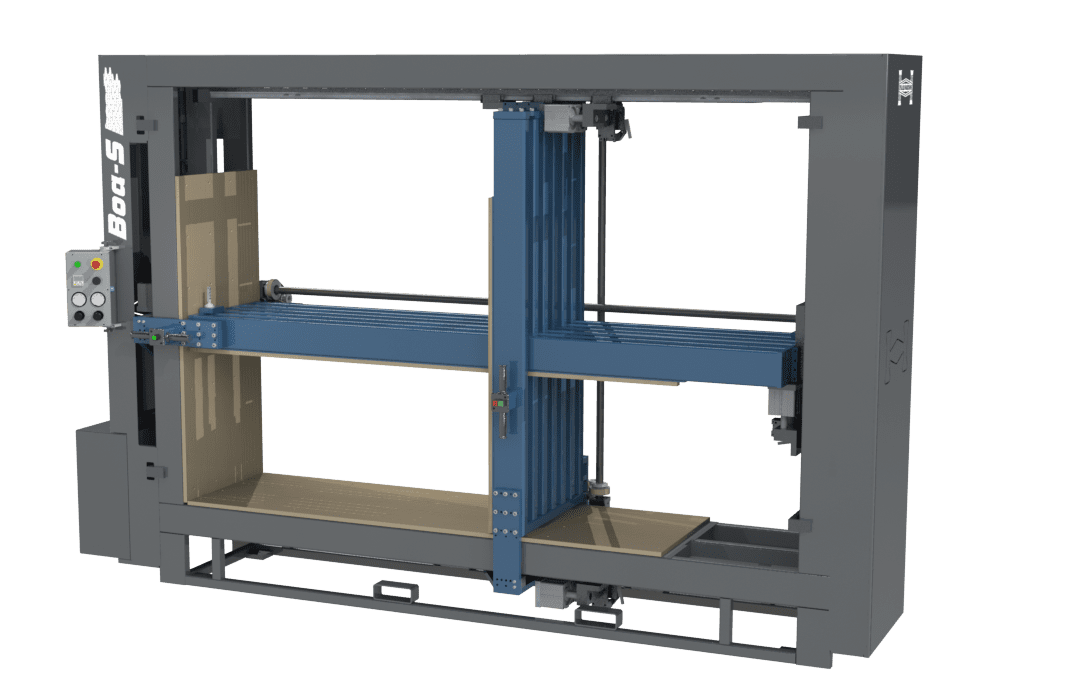

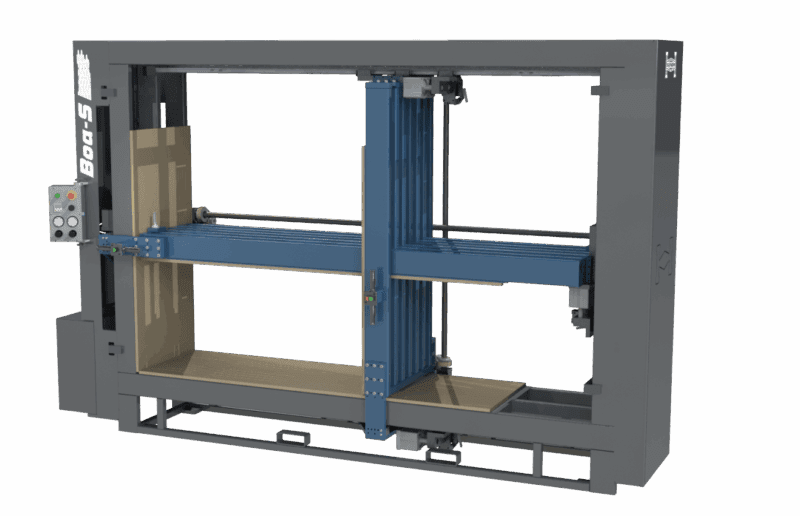

Pillar Boa-S: Servo-Assisted Case Clamp for Cabinet Excellence

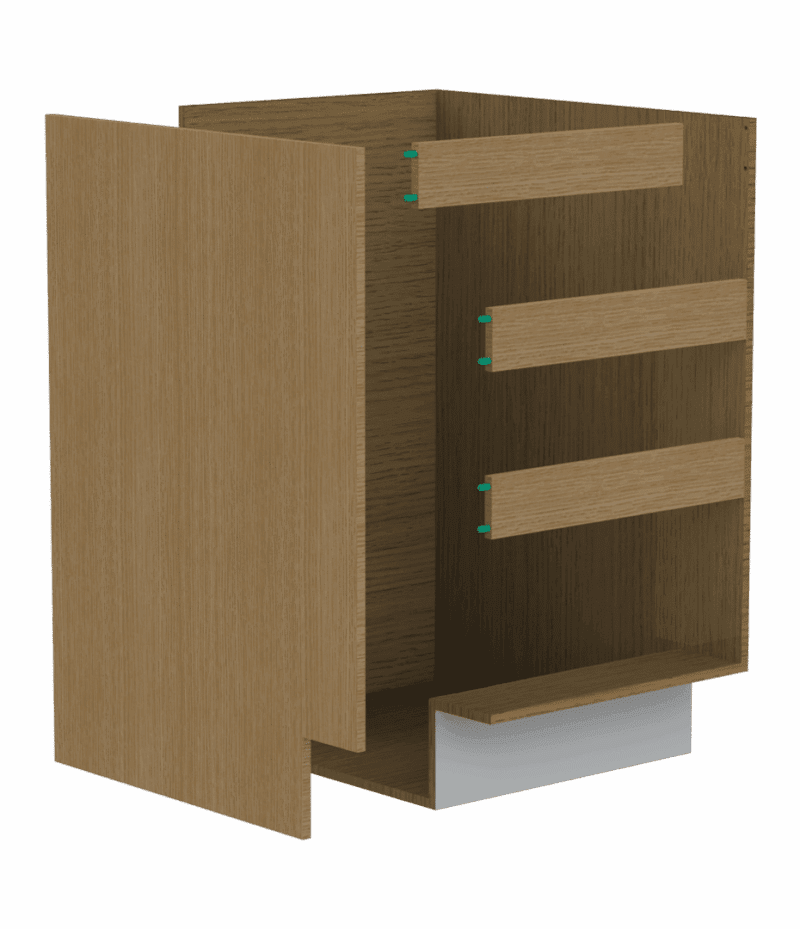

Supercharge your woodworking shop with the Pillar Boa-S, a servo-assisted manual case clamp designed to streamline the assembly of cabinet boxes, drawer boxes, and case goods. Engineered for medium to large production runs, this machine uses dowel construction to produce more boxes per hour per employee than any other method, ensuring perfectly square joints while the glue cures. Its interwoven pressure beam design applies constant, even force, outperforming pod-style clamps for speed and reliability. With a robust 5,600 lb. frame and flexible size adjustments, the Boa-S is a game-changer for cabinetmakers aiming to boost efficiency and quality.
Standout Features and Advantages

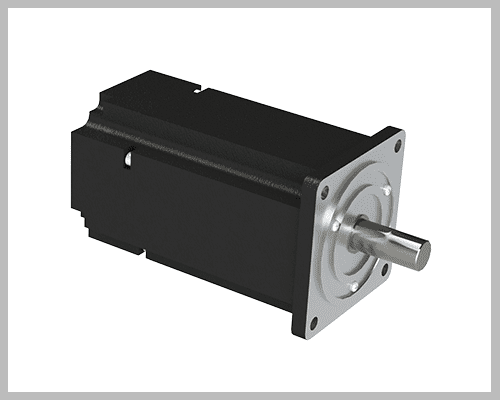

- Servo-Assisted Precision: Servo-driven manual operation enables rapid adjustments between small and large box sizes, ensuring square and secure clamping.
- High-Volume Efficiency: Speeds up production by allowing hardware, drawer slides, and doors to be installed while parts set in the clamp.
- Versatile Capacity: Handles boxes from 9″ x 11″ x 28″ up to 96″ x 60″ x 28″, accommodating a wide range of cabinet sizes.

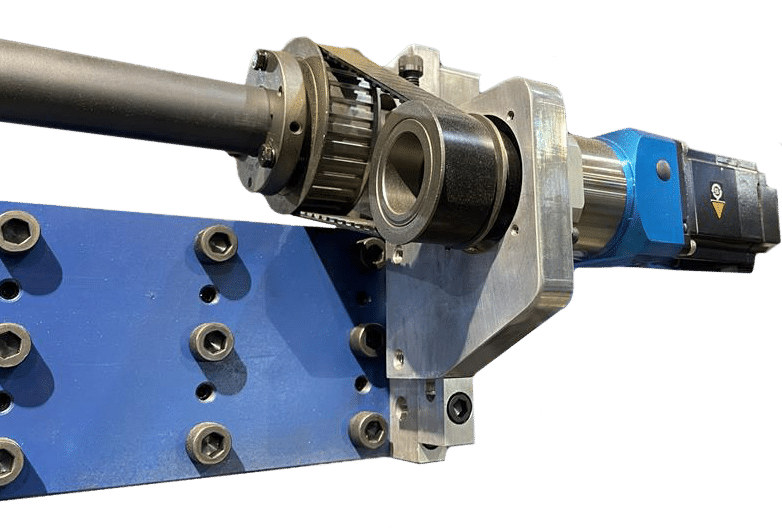

- Heavy-Duty Construction: 5,600 lb. frame with high-precision square rail guides and rack-and-pinion axes for durable, reliable performance.
- Optional Safety & Maintenance: Add a rear cage enclosure for enhanced safety or an automatic oiler for lubricated bearings, extending machine life.

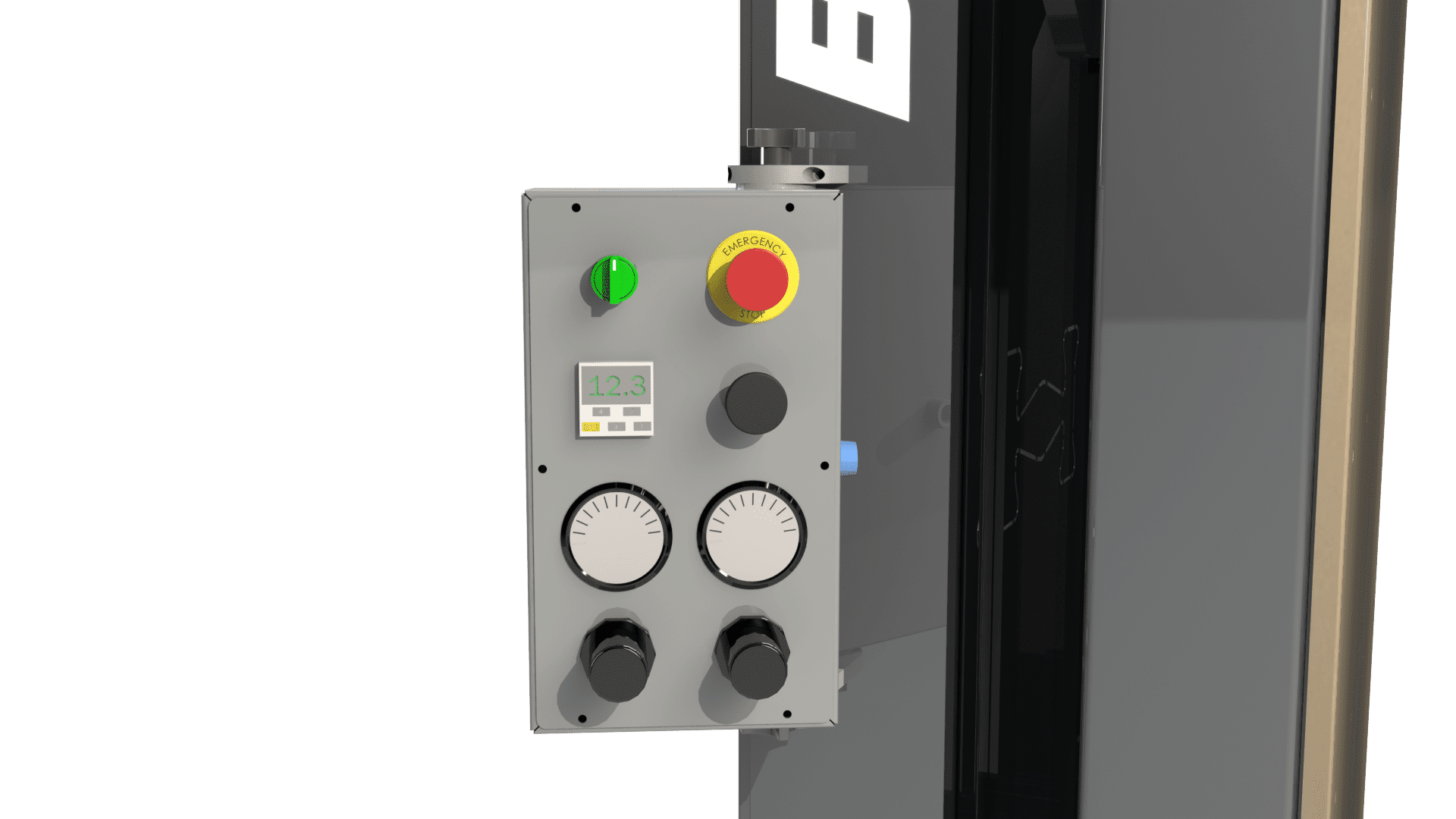

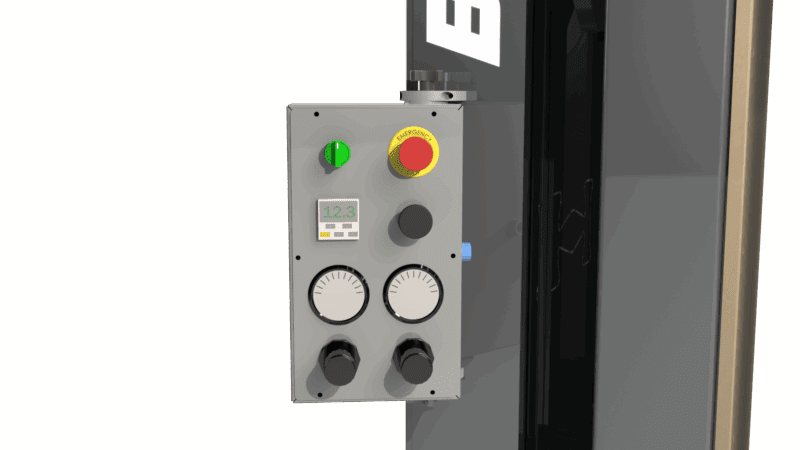

- Operator-Friendly Design: Intuitive controls and fast setup make it accessible for shops of all skill levels, maximizing productivity.
Perfect For
The Pillar Boa-S is ideal for:
- Medium to large cabinet shops needing fast, square clamping for doweled case goods.
- Manufacturers aiming to eliminate post-lamination and enhance production flow.
- Workshops seeking a flexible, heavy-duty clamp for diverse box sizes.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Servo-assisted manual case clamp |
| Opening Width Capacity | 9″ to 96″ |
| Opening Height Capacity | 11″ to 60″ |
| Opening Depth Capacity | 28″ |
| Axes | X, Y: Rack-and-pinion |
| Guides | High-precision square rail guides and bearings |
| Electrical | 3-phase, 208-230V, 60 cycles, 20 amps |
| Compressed Air | 90 PSI at 10 CFM |
| Dimensions | 149″ W x 72″ D x 102″ H |
| Weight | 5,600 lbs. (approx.) |
Why Pillar Excels
Built in Salt Lake City, Utah, every Pillar Boa-S embodies American engineering excellence, backed by a one-year warranty and free online training. Pillar’s reputation for innovation and direct factory support ensures your machine delivers lasting value, trusted by woodworking professionals for its robust performance.
Request Your Customized Quote from 360 Degree Machinery
Ready to perfect your cabinet assembly? Click the “Add to quote” button above or call 630-229-6705 to request a customized quote for the Pillar Boa-S today!
