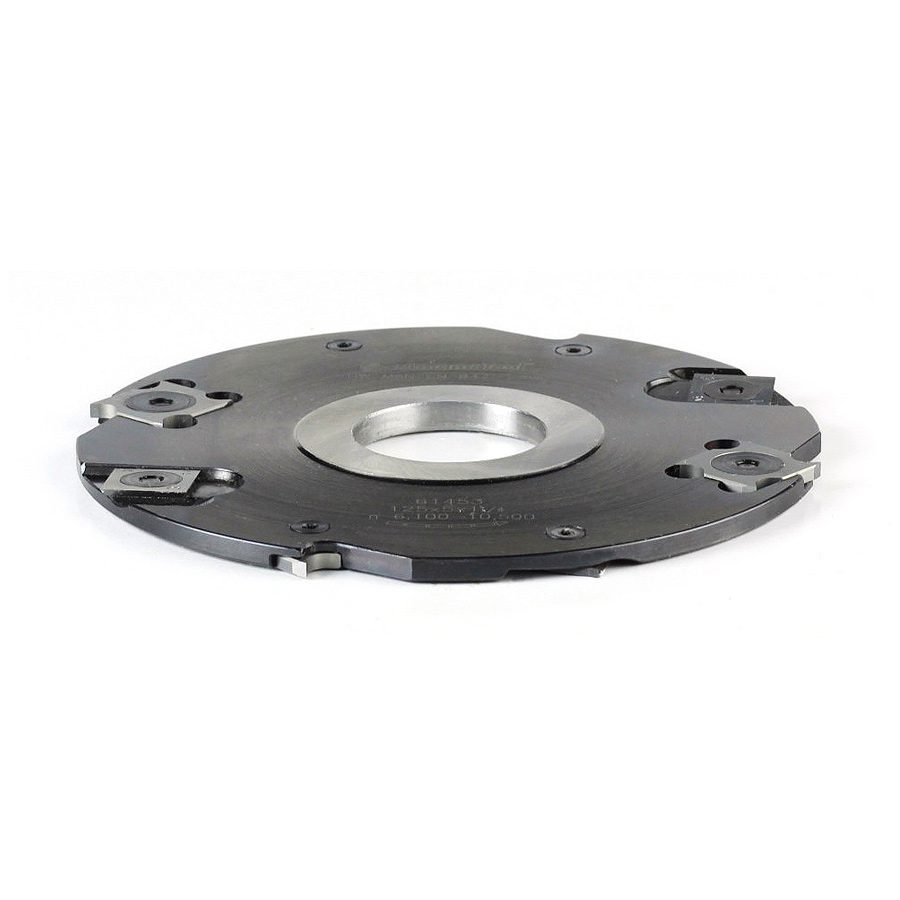

Pillar HP5D: Horizontal Bore, Dowel, and Panel Groove Machine

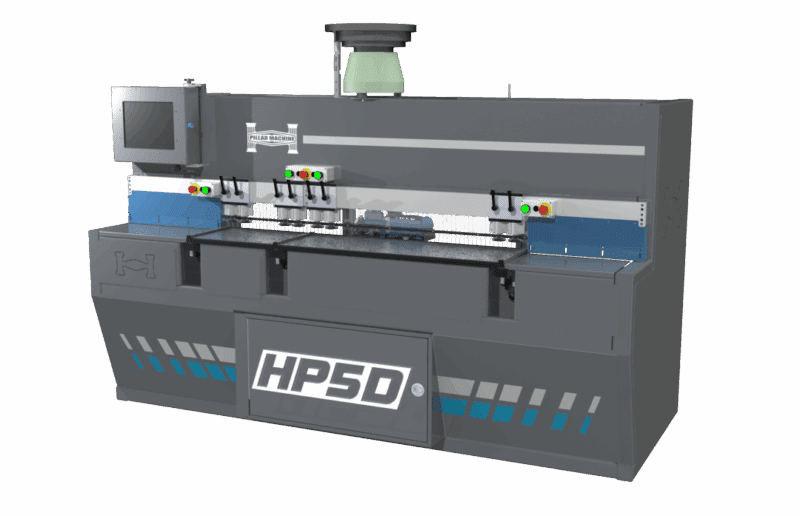

Unleash the full potential of your woodworking shop with the Pillar Machine HP5D, a versatile CNC machining center crafted for TFL (thermally fused laminate), TFM (thermally fused melamine), paper-wrapped, vinyl-wrapped, and thermofoil doors. This horizontal point-to-point machine excels at boring holes, inserting dowels, and cutting panel grooves, making it a must-have for cabinetmakers and furniture manufacturers. By consolidating multiple operations into one unit, the HP5D slashes setup times and boosts productivity, freeing up your CNC routers for other tasks. Discover this powerhouse at 360 Degree Machinery and redefine your shop’s efficiency.
Standout Features and Advantages

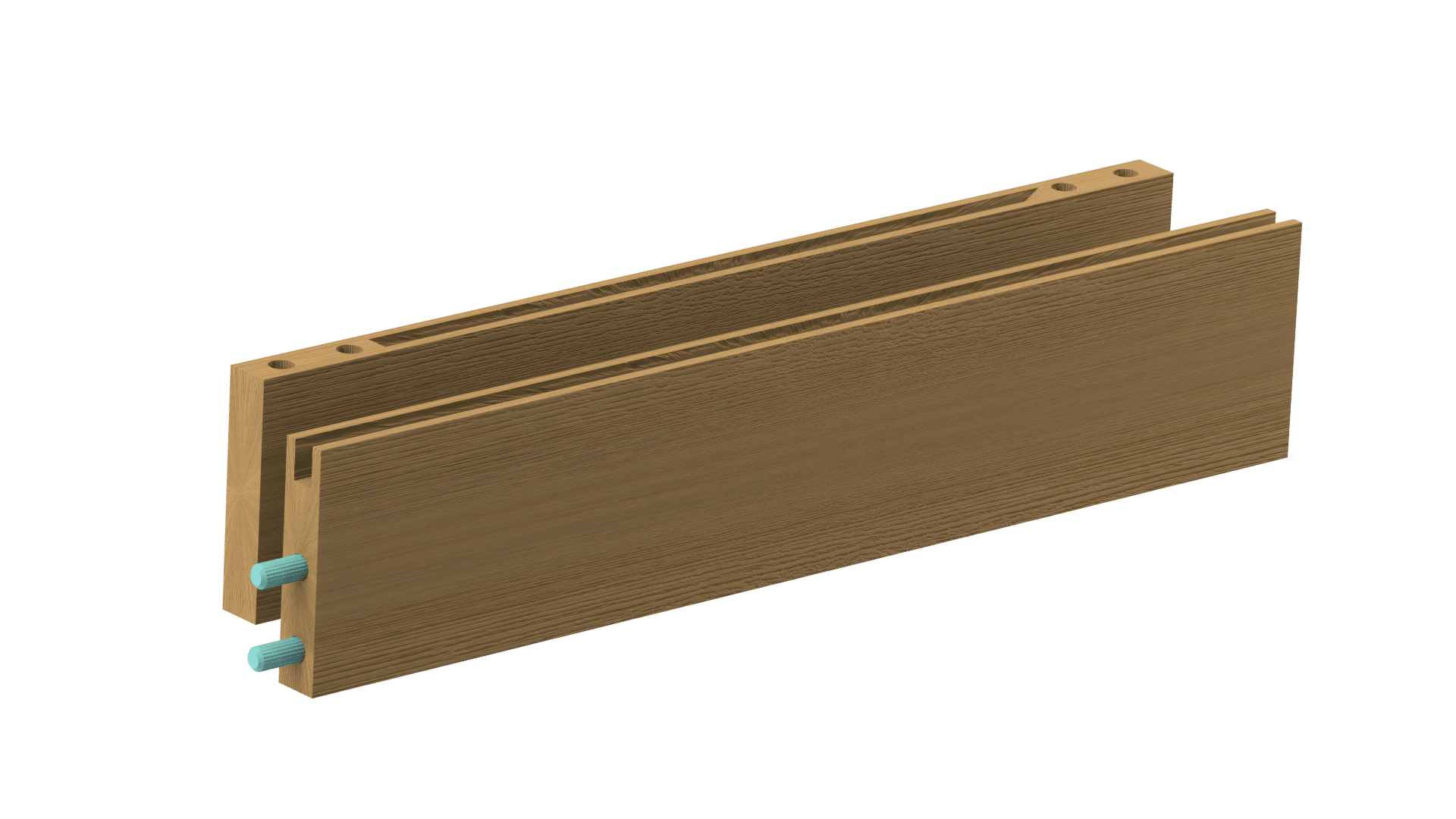

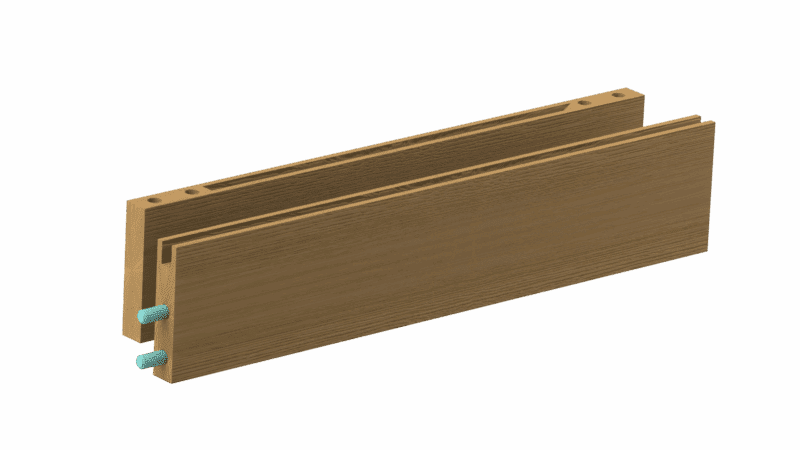

- Pinpoint CNC Accuracy: Seamlessly positions the spindle for boring and the inserter for glue or water injection and dowel placement, ensuring impeccable joints.

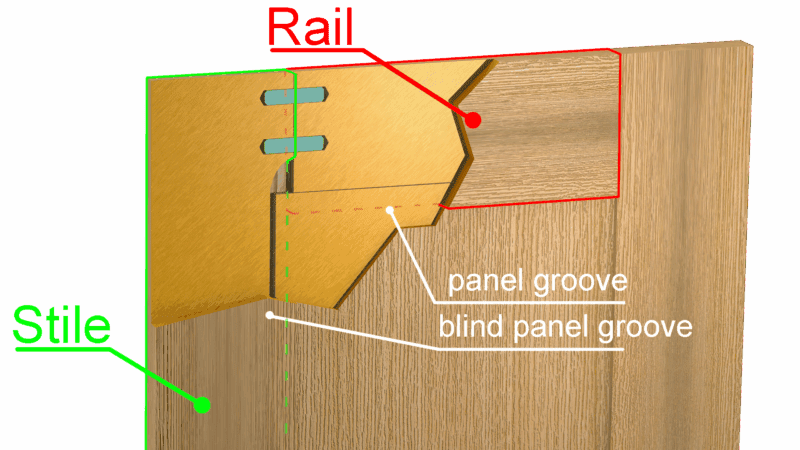

- Rapid Processing: Completes each bore, glue, and dowel insertion in 10 seconds (at 64 mm intervals), with panel grooves in 15-30 seconds, for swift production.

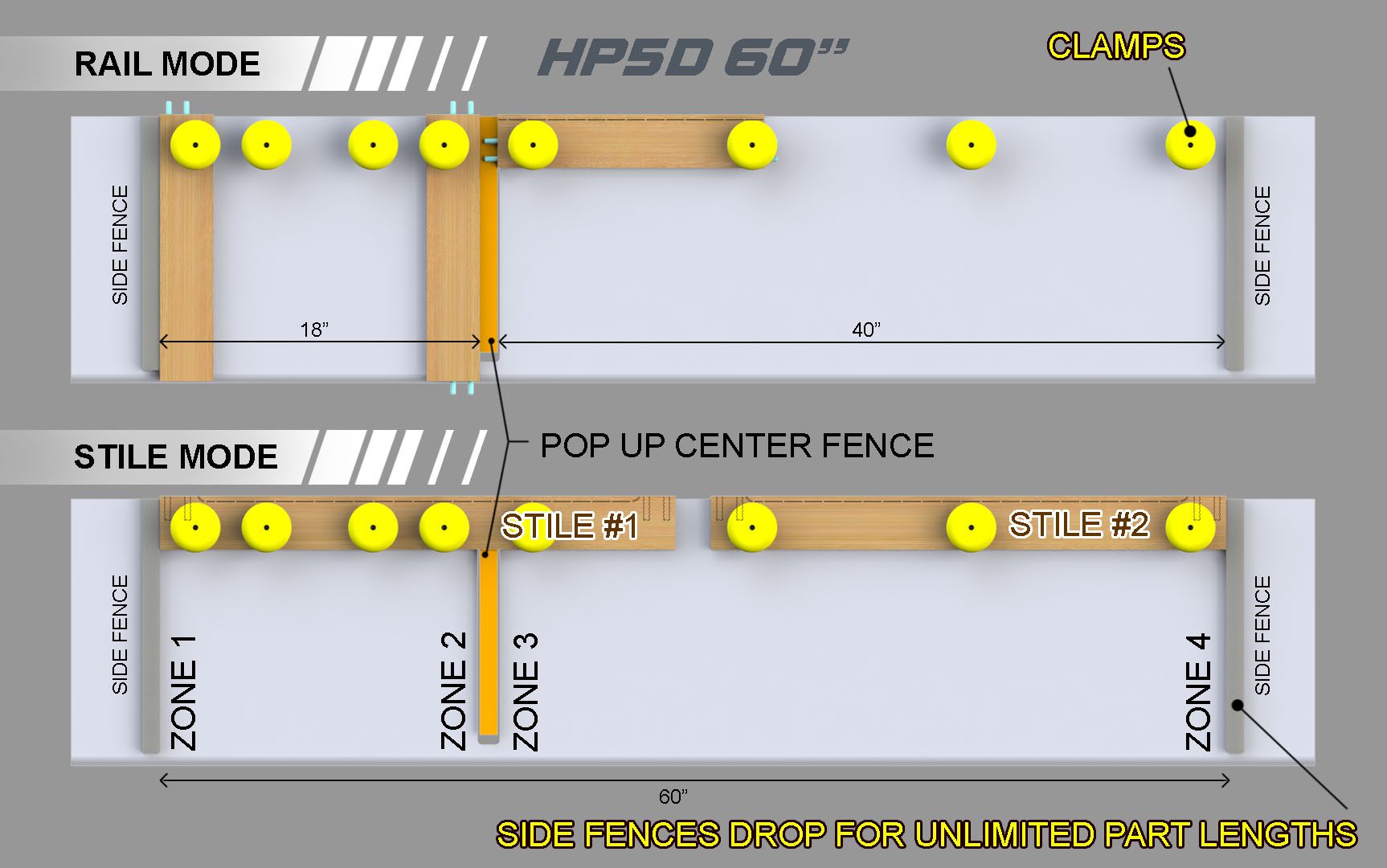

- Four Work Zones: Features two fixed and two pop-up zones for pendulum processing, keeping your workflow moving without delays.
- Intuitive Control Hub: A 15″ vibrant touchscreen simplifies programming, letting operators of all skill levels master the machine quickly.
- Flexible Customization: Add multiple spindles or hardware inserters to tailor the HP5D to your shop’s unique needs.
- Rugged Reliability: Built with a welded steel frame and premium components for unwavering performance in high-demand environments.
Perfect For
The HP5D is tailored for:

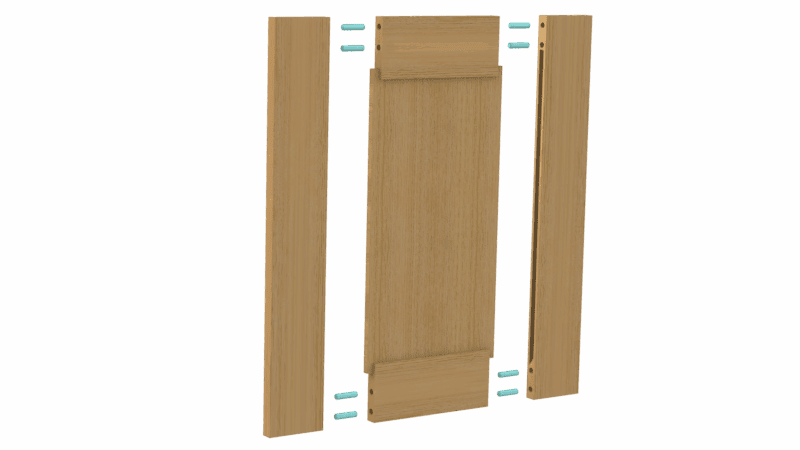

- Crafting TFL, TFM, and wrapped doors with precision and speed.
- Shops aiming to consolidate boring, doweling, and grooving into one efficient machine.
- Manufacturers seeking to optimize production by offloading tasks from CNC routers.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Horizontal point-to-point bore, dowel, and panel groove machining center |
| Work Zones | 2 fixed, 2 pop-up (standard) |
| Cycle Time | 10 seconds per bore, glue, dowel (64 mm intervals); 15-30 seconds for grooves |
| Dowel Size | 8 mm diameter (standard) |
| Spindle Control | CNC positioning |
| Display | 15″ industrial touchscreen |
| Software Tools | Parametric programming, pattern drilling/inserting, online diagnostics |
| Build | Welded tubular steel frame |
| Extras | Optional multi-spindle setups, hardware inserters |
Smart Software & Interface
The HP5D’s 15″ touchscreen is your operational nerve center, blending power with user-friendly design. Import designs via .xml files or barcodes (with optional reader) and adjust settings effortlessly. Key features include:
- Visual guides for drilling and dowel placement.
- Parametric flexibility for custom setups.
- Patterned operations for intricate designs.
- Secure access and remote diagnostics (with internet).
Why Pillar Machine Excels
Handcrafted in Salt Lake City, Utah, every Pillar Machine HP5D is a testament to American engineering excellence. Backed by a one-year warranty and free online training, Pillar delivers unmatched durability and support. Industry leaders trust Pillar for its innovative designs and direct factory expertise, ensuring your investment thrives.
Request Your Customized Quote from 360 Degree Machinery
Ready to supercharge your TFL door production? Click the “Add to quote” button above or call 630-229-6705 to request a customized quote for the HP5D today!
