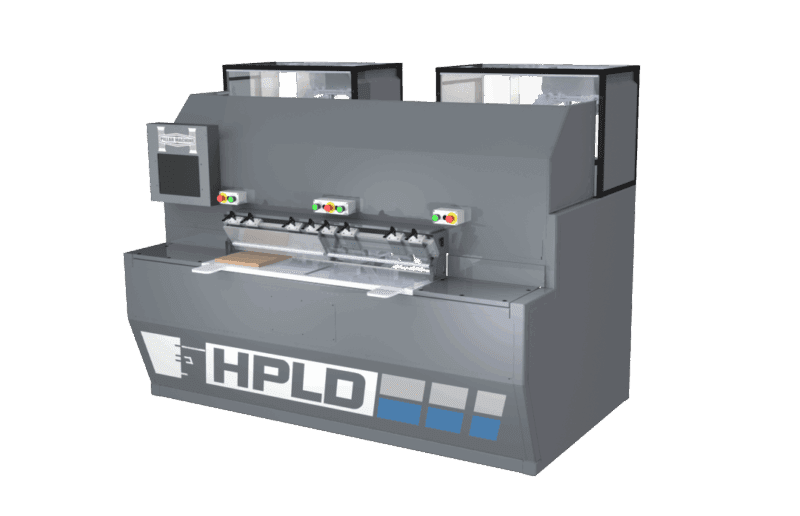

Pillar HPLD: Horizontal Position Lock Dowel Insertion Machine
Redefine efficiency in your woodworking shop with the Pillar HPLD, a cutting-edge CNC machine that masters horizontal boring and Lockdowel hardware insertion. Tailored for cabinetmakers and furniture builders, this machine inserts H-clips, Channel Locks, and Spring Pins without glue or clamps, cutting assembly time by up to 80%. Its robust design and smart features make it a standout for shops aiming to boost output while maintaining precision. With the Pillar HPLD, you’ll craft stronger, faster, and cleaner joints, all while streamlining your workflow.
Standout Features and Advantages
- Glue-Free Innovation: Inserts Lockdowel hardware without glue or water, eliminating mess and speeding up assembly for cleaner, stronger joints.
- CNC-Driven Accuracy: Precisely positions the spindle for boring and hardware insertion, ensuring flawless results every time.
- High-Speed Output: Boosts productivity with rapid cycles, producing up to three times more product without additional labor.
- Four Work Zones: Includes two fixed and two pop-up zones for pendulum processing, keeping your production line moving smoothly.
- Smart Interface: A 15″ touchscreen with intuitive graphics simplifies programming, integrating with Cabinet Vision for seamless design-to-production flow.
- Built to Endure: Features a welded steel frame and premium components for reliable performance in high-demand environments.
Perfect For
The Pillar HPLD is ideal for:
- High-volume cabinet and furniture shops seeking faster, cleaner assembly methods.
- Manufacturers wanting to eliminate glue and clamping for streamlined production.
- Operations looking to offload boring and doweling from CNC routers to maximize efficiency.
Technical Breakdown
| Feature | Specification |
|---|---|
| Machine Type | Horizontal point-to-point Lockdowel insertion |
| Work Zones | 2 fixed, 2 pop-up (standard) |
| Hardware Types | H-clips, Channel Locks, Spring Pins |
| Spindle Control | CNC positioning |
| Display | 15″ industrial touchscreen |
| Software Tools | Parametric programming, pattern drilling/inserting, online diagnostics |
| Build | Welded tubular steel frame |
| Extras | Customizable configurations available |
Smart Software & Interface
The Pillar HPLD’s 15″ touchscreen is a user-centric control hub, enabling fast program setup in under a minute. Its open-architecture software syncs with design tools like Cabinet Vision via .xml files or barcodes (optional reader required), ensuring a smooth workflow. Key features include:
- Visual guides for precise hole and hardware placement.
- Parametric programming for custom flexibility.
- Patterned operations for complex designs.
- Secure access and online diagnostics (with internet).
Why Pillar Excels
Handcrafted in Salt Lake City, Utah, every Pillar HPLD reflects American engineering excellence, backed by a one-year warranty and free online training. Pillar’s commitment to durability and innovation, paired with direct factory support, ensures your machine delivers lasting value. Trusted by woodworking pros, it’s a reliable choice for scaling your production.
Request Your Customized Quote from 360 Degree Machinery
Ready to transform your assembly process? Click the “Add to quote” button above or call 630-229-6705 to request a customized quote for the Pillar HPLD today!
