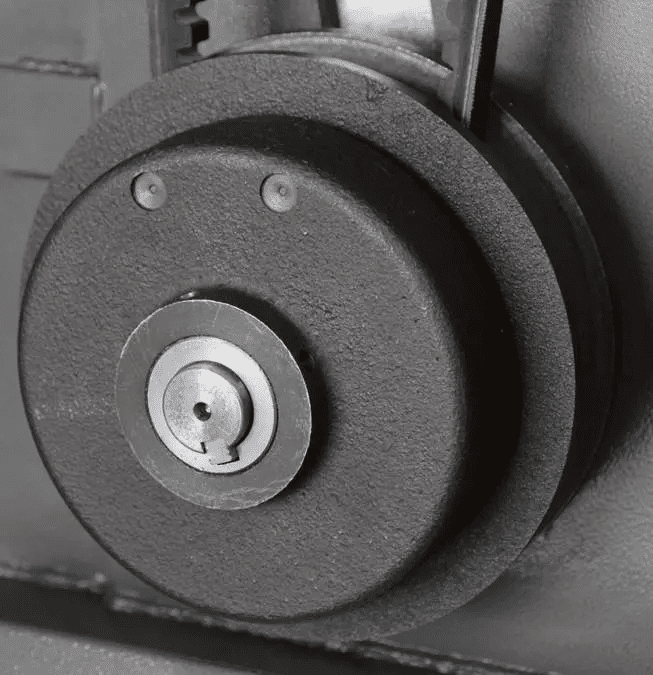

Disc-Brake With Micro Switch
110V Outlet On Back For Light
Window For Tension
Window For Tracking
Magnetic Blade Tension Guide
Worm Gear & Pinion Upper Guide
10 Point Laguna Ceramic Guides

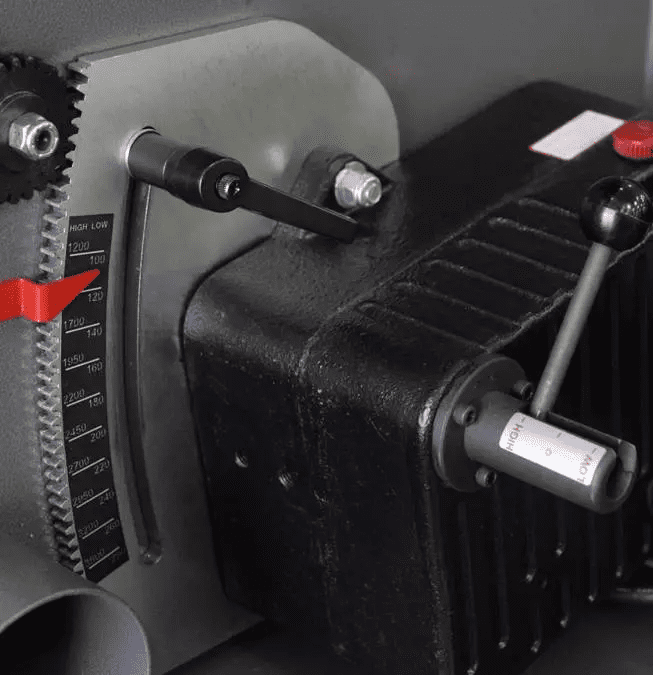

Mechanical Variable Speed Drive
Low Blade Speed: 100-290 FPM
High Speed Blade: 1200-3500 FPM
Anodized Insert With Micro Adjustment
Dynamically Balanced Cast Iron Wheels
Urethane Single Piece Snap-On Tire
Cast Table Size: 20″ x 26″
Table Tilt: 6°, +45°
Quick-Release Tension
Hi/Low Anodized Aluminum Fence: 22-¾″ x 7-¼″ x 11/16″
Table Height: 38″
Dust Ports: 4″ x 2
Overall Height: 77-¾″
Dimensions (Base): 27″ x 20″
Dimensions (Overall): 38″ x 36″
Dimensions (Box): 82″ x 34″ x 36″
Weight (Net/Ship): 480/545 lbs
Shipping Dimensions (L x W x H): 55″ x 22″ x 25″

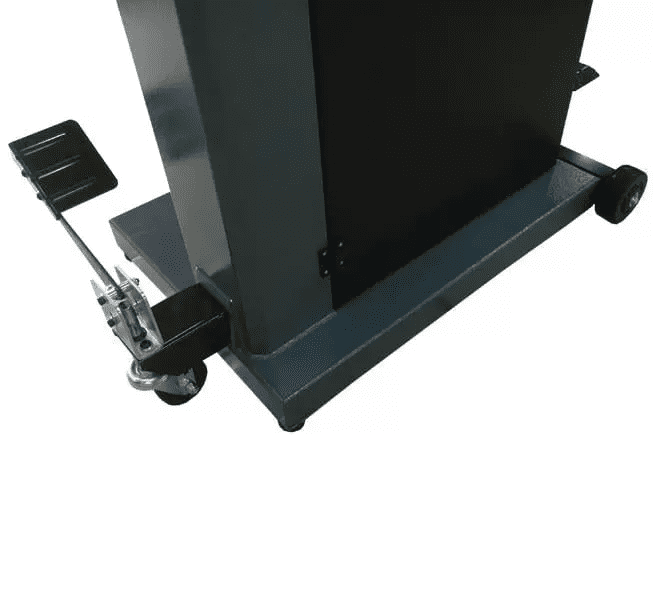

Optional 18BX & 18CX Wheel System
- Foot Operated
- 360° Omni-Directional
- Rubber-Coated Wheels
- Adjustable Rubber Pads
- Oilite Bronze Bushing Allows For Less Friction & Longer Life
- Easy Install With No Drilling Required
- Pedal Raises & Lowers Front Wheel
- Wheels Mounted Outside Frame To Maximize Stability
Optional 18BX & 18CX Pro Light
- Swivels 220°
- 12 Volt/50 Watt
- Tilts Vertically 320°
- Built-In Transformer
- Independent On/Off
- Ribbed Aluminum Case
- Halogen Hi-Intensity Light
- Bright, Glare-Free Flood Light
- Designed For Even Light Distribution
- Reinforced Glass, Dust-proof Design
- Top & Side Cabinet Mounting
