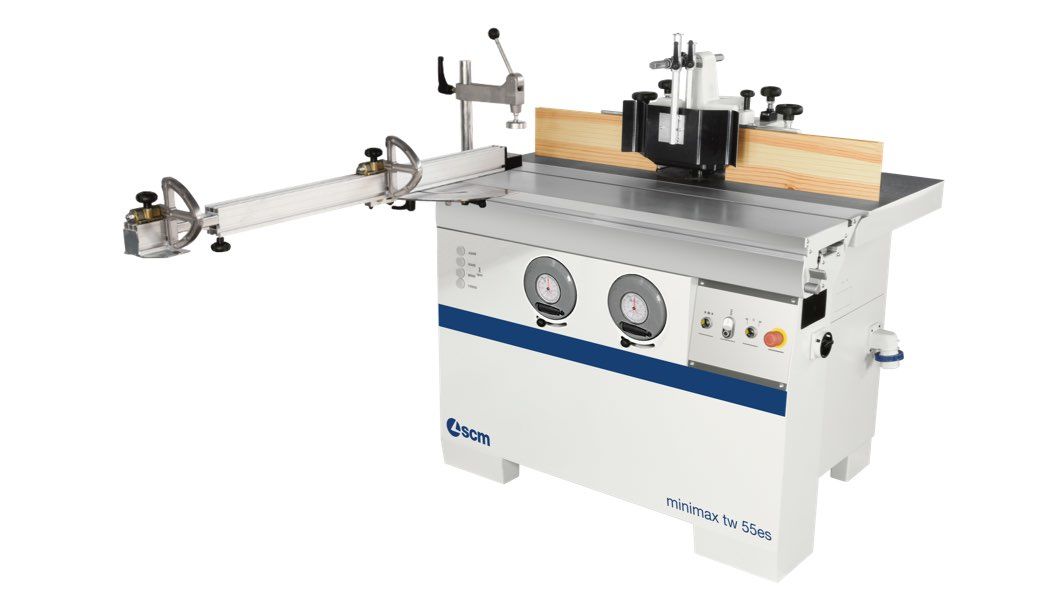

SCM minimax tw 55es Sliding Tilting Shaper (4.8hp 1-Phase or 8hp 3-Phase)

SCM minimax tw 55es Sliding Tilting Shaper (4.8hp 1-Phase or 8hp 3-Phase)

Price range: $11,675.00 through $12,275.00

SKU N/A Categories , , Tags , , Brand: ,

We can not find a better European machine at this price point, of this quality, and with these features. Extreme flexibility and versatility all in one well optioned package!

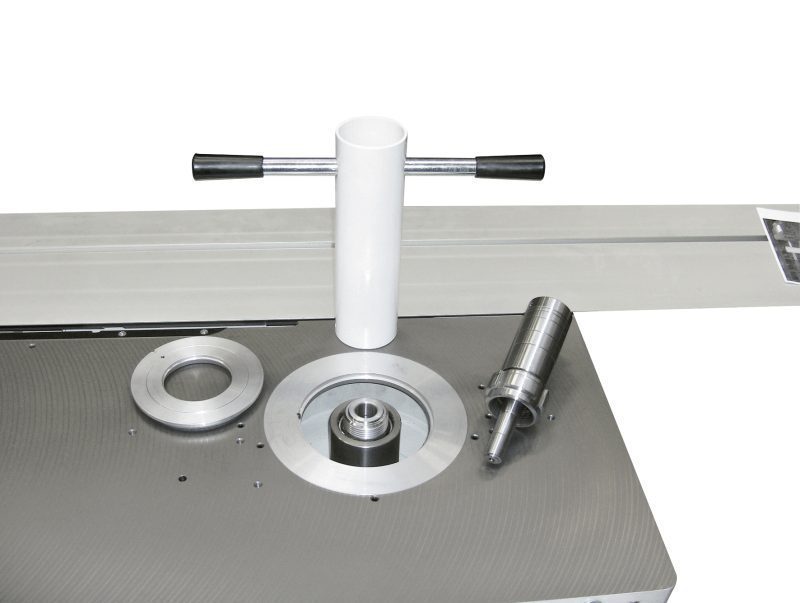

Available in 1-Phase model tw 55es-1ph(4.8hp) or 3-Phase model tw 55es-3ph (8HP) US model has hand wheels however this model can be special ordered with powered movement.

The right spindle shaper for demanding craftsmen and carpentries, thanks to its customization and flexibility.
The minimax tw 55es is the culmination of years of experience in manufacturing quality solid wood SCM products. This 4-speed heavy duty machine is standard with both a sliding table and tilt! The slider has hardened steel guide ways and precision bearings, so it incorporates the exact technology found in our top selling sliding table saws! The hood has memory pins so if removed, it will go right back into the same position, making this shaper accurate and repeatable.

Maximum stability and rigidity in every working condition thanks to a big cast iron spindle shaper unit and a sturdy base in single-block steel. Great versatility with the spindle shaper with 4 speeds and available in fixed or tilting version. Best support in all machinings, thanks to the 330 mm width sliding table.

*Photos may include optional equipment.

Advertised Price Configuration:

TW 55ES – 1ph, 4.8HP, Tilting 1 1/4” Interchangeable spindle, sliding table, fence w/ mechanical adjustments, tenoning kit

TW 55ES – 3ph, 8HP, Tilting 1 1/4” Interchangeable spindle, sliding table, fence w/ mechanical adjustments, tenoning kit



Add to Quote Request

Click here to Download Minimax SI X and Elite S range PDF Brochure

ADVANTAGE

Unsurpassed moulding
Maximum stability and rigidity in all working conditions, thanks to a large spindle shaper column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from shaping to routing and tenoning, with the possibility to fit tools up to 320 mm of diameter (300 mm no CE).

High-tech accessories
As option it is available the spindle shaper hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.

Unrivalled cutting finishing
Optimal support also to larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.

Technical data

minimax tw 55es
Surfacing tables total length mm 125
Spindle moulder speed (a 50 Hz) rpm 3500/6000/8000/10.000
Max. tool diameter when profiling mm 210 ÷ 240
Max. tool diameter lowered under the table at 90° mm 240
Max. tool diameter when tenoning mm 320 (300 no CE)
Three-phase motors starting from kW/Hz 5 (6) / 50 (60)



Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage Machines nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

Click here to Download Minimax SI X and Elite S range PDF Brochure

ADVANTAGE

Unsurpassed moulding
Maximum stability and rigidity in all working conditions, thanks to a large spindle shaper column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from shaping to routing and tenoning, with the possibility to fit tools up to 320 mm of diameter (300 mm no CE).

High-tech accessories
As option it is available the spindle shaper hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.

Unrivalled cutting finishing
Optimal support also to larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.

Technical data

minimax tw 55es
Surfacing tables total length mm 125
Spindle moulder speed (a 50 Hz) rpm 3500/6000/8000/10.000
Max. tool diameter when profiling mm 210 ÷ 240
Max. tool diameter lowered under the table at 90° mm 240
Max. tool diameter when tenoning mm 320 (300 no CE)
Three-phase motors starting from kW/Hz 5 (6) / 50 (60)



Additional information

Phase: No selection

1-Phase model tw 55es-1ph (4.8 hp), 3-Phase model tw 55es-3ph (8 hp)
