JLT #78H – Mini Pod Press In 5 Different Sizes

JLT #78H – Mini Pod Press In 5 Different Sizes

Price range: $7,575.00 through $28,875.00

SKU N/A Categories , , , Tags , Brand:

Features & Specs:

  • Material Capacities:
    • 12″ Wide x 42″ Long (1 Section)
    • 12″ Wide x 84″ Long (2 Section)
    • 12″ Wide x 126″ Long (3 Section)
    • 12″ Wide x 168″ Long (4 Section)
    • 16″ Wide x 42″ Long (1 Section)
  • Adjustable Opening: 0″ – 40″ of Stackable Depth
  • Pod Press is powered by a total of (18) 30 Square Inch Diaphragm Cylinders
    • Maximum Pressure: 10 Tons Per 3-1/2′ Section @ 110 psi
  • Versatile Easy to use Operation for a Variety of Material Sizes
    • Face Glue Short 40” Block or Press Long Entry Door Stiles up to 10’

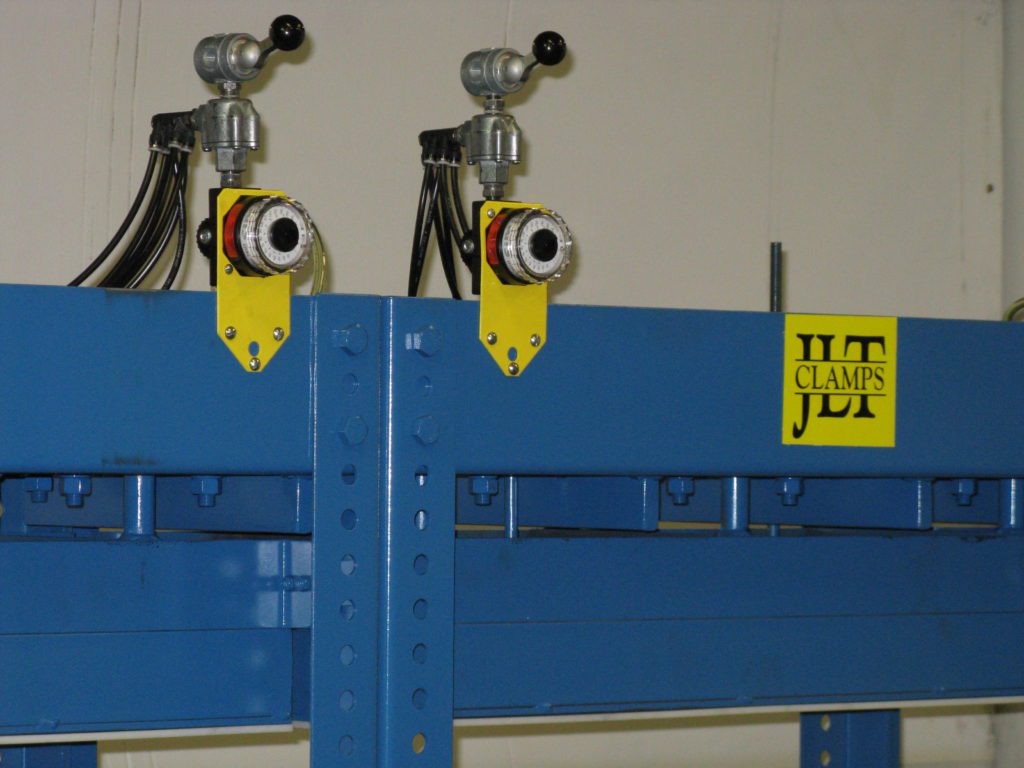

  • Dial Regulators for Fine and Consistent Control of Clamping Pressure
    • Longer Machines have Multiple Dials for even more Control
  • Pyramid Different Size Glue Ups
  • Modular Design
Add to Quote Request

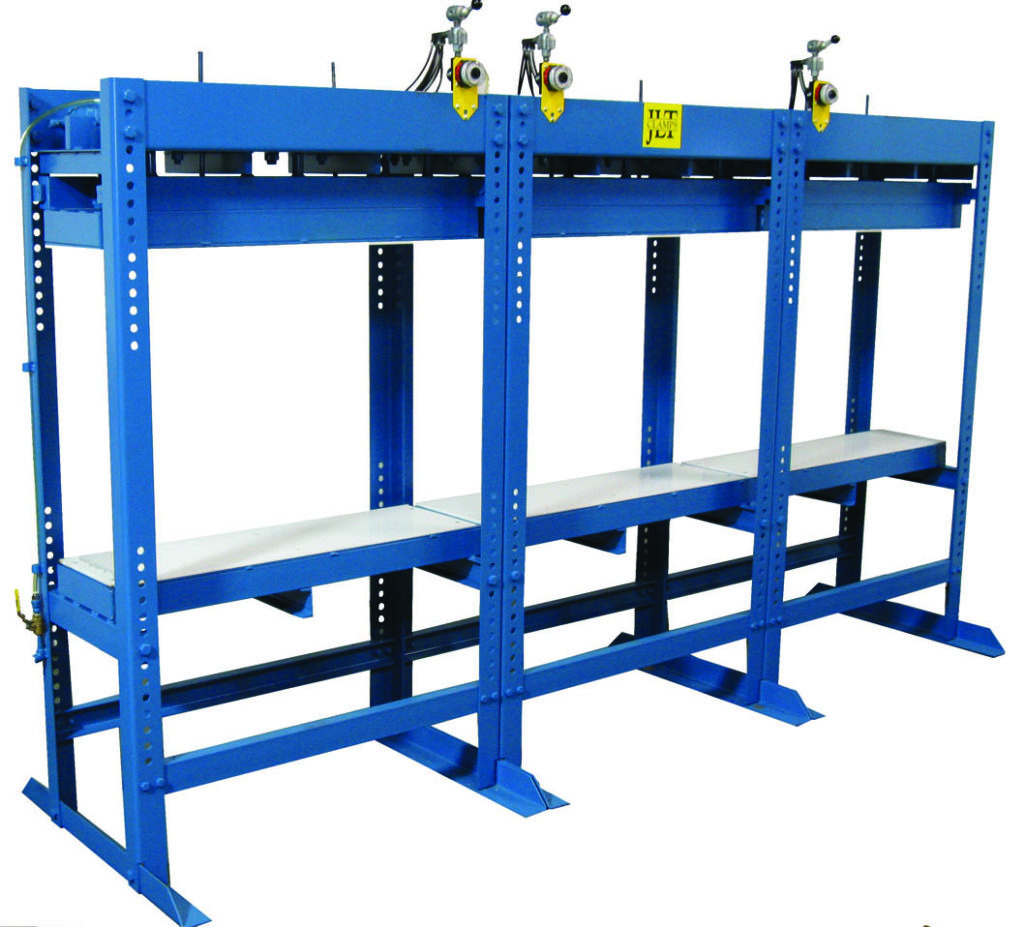

  • The Mini Pod Press is a low cost high pressure cold press laminating machine. It features individually controlled top platens and a bottom platen adjustable at 1 1/2″ increments to a maximum opening of 40″. The work area is 12″ wide and machines are currently offered in lengths of 3-1/2′, 7′ or 10-1/2′.Air pressure and alignment are carefully controlled via dial regulators on each individual platen and air can be locked in for any length of time through the use of a hand operated level valve
    • Versatile Easy to use Operation for a Variety of Material Sizes
    • Vertical Press Offers 40’’ Maximum Capacity

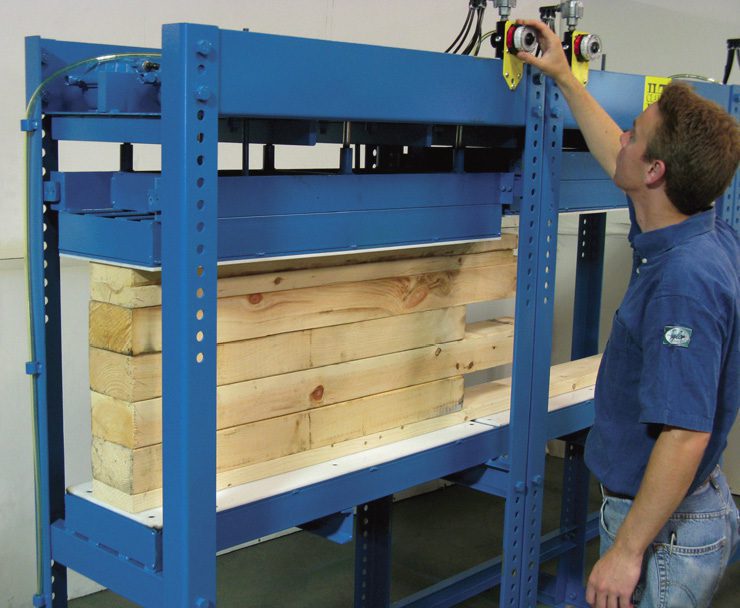

    • Stack Multiple Wood Components up to 12”Wide
      • Pyramid Different Size Glue Ups to Increase Production
      • Face Glue Short 40” Block or Press Long Entry Door Stiles up to 10’
    • Pod Press is powered by a total of (18) 30 Square Inch Diaphragm Cylinders
      • Diaphragm Cylinders Provide Pod Press with 30 Tons of Clamping Pressure @ 120 PSI
    • Upper Steel Platen has a 2” Stroke when Air is activated

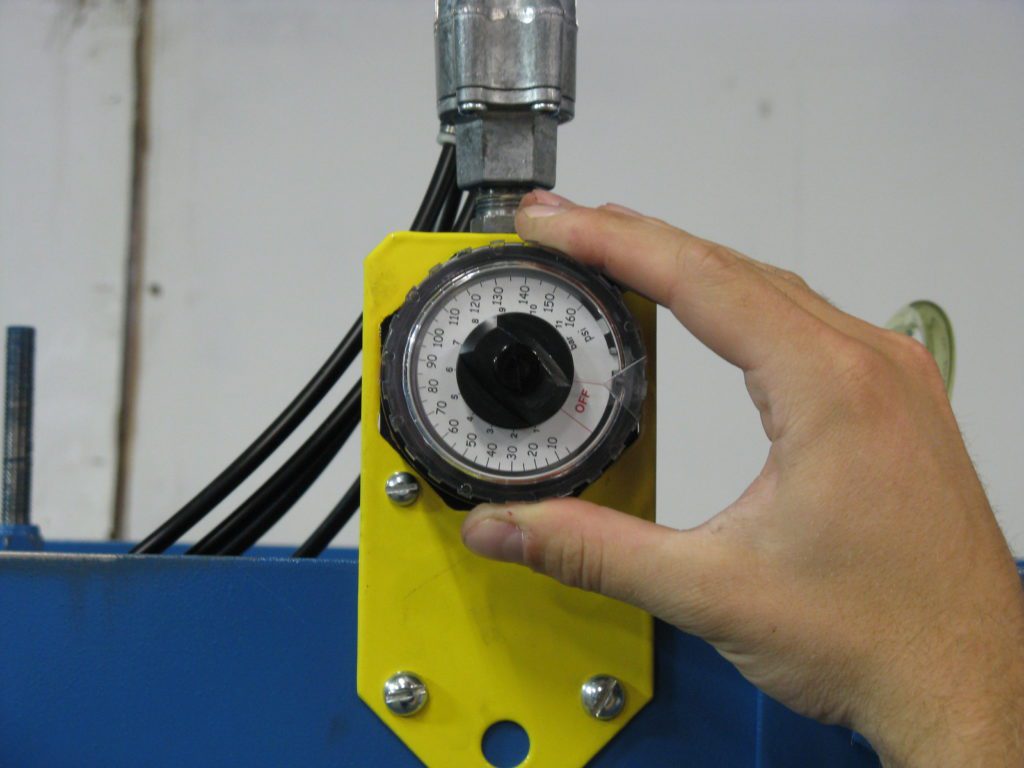

    • Air pressure and Alignment are Carefully Controlled by a Dial Regulator
      • Dial also Provides consistent clamping pressure at your desired setting
      • Each 42” Platen is Individually Operated
    • Upper and Lower Platens are made of 100% Steel Construction
    • Platens are Adjustable at 1 ” Increments up to a Maximum Opening of 40”
    • Both Platens Feature a Flat , Non Stick 1/2 “ Thick UHMW Base Plate

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage Machines nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

  • The Mini Pod Press is a low cost high pressure cold press laminating machine. It features individually controlled top platens and a bottom platen adjustable at 1 1/2″ increments to a maximum opening of 40″. The work area is 12″ wide and machines are currently offered in lengths of 3-1/2′, 7′ or 10-1/2′.Air pressure and alignment are carefully controlled via dial regulators on each individual platen and air can be locked in for any length of time through the use of a hand operated level valve
    • Versatile Easy to use Operation for a Variety of Material Sizes
    • Vertical Press Offers 40’’ Maximum Capacity
    • Stack Multiple Wood Components up to 12”Wide
      • Pyramid Different Size Glue Ups to Increase Production
      • Face Glue Short 40” Block or Press Long Entry Door Stiles up to 10’
    • Pod Press is powered by a total of (18) 30 Square Inch Diaphragm Cylinders
      • Diaphragm Cylinders Provide Pod Press with 30 Tons of Clamping Pressure @ 120 PSI
    • Upper Steel Platen has a 2” Stroke when Air is activated
    • Air pressure and Alignment are Carefully Controlled by a Dial Regulator
      • Dial also Provides consistent clamping pressure at your desired setting
      • Each 42” Platen is Individually Operated
    • Upper and Lower Platens are made of 100% Steel Construction
    • Platens are Adjustable at 1 ” Increments up to a Maximum Opening of 40”
    • Both Platens Feature a Flat , Non Stick 1/2 “ Thick UHMW Base Plate

Additional information

Size/Capacity: No selection

#78H-12W-42L-40H-M4 12″ Wide x 42″ Long (1 Section), #78H-12W-84L-40H-M4 12″ Wide x 84″ Long (2 Section), #78H-12W-126L-40H-M4 12″ Wide x 126″ Long (3 Section), #78H-12W-168L-40H-M4 12″ Wide x 168″ Long (4 Section), #78H-16W-42L-40H-M4 16″ Wide x 42″ Long (1 Section)
