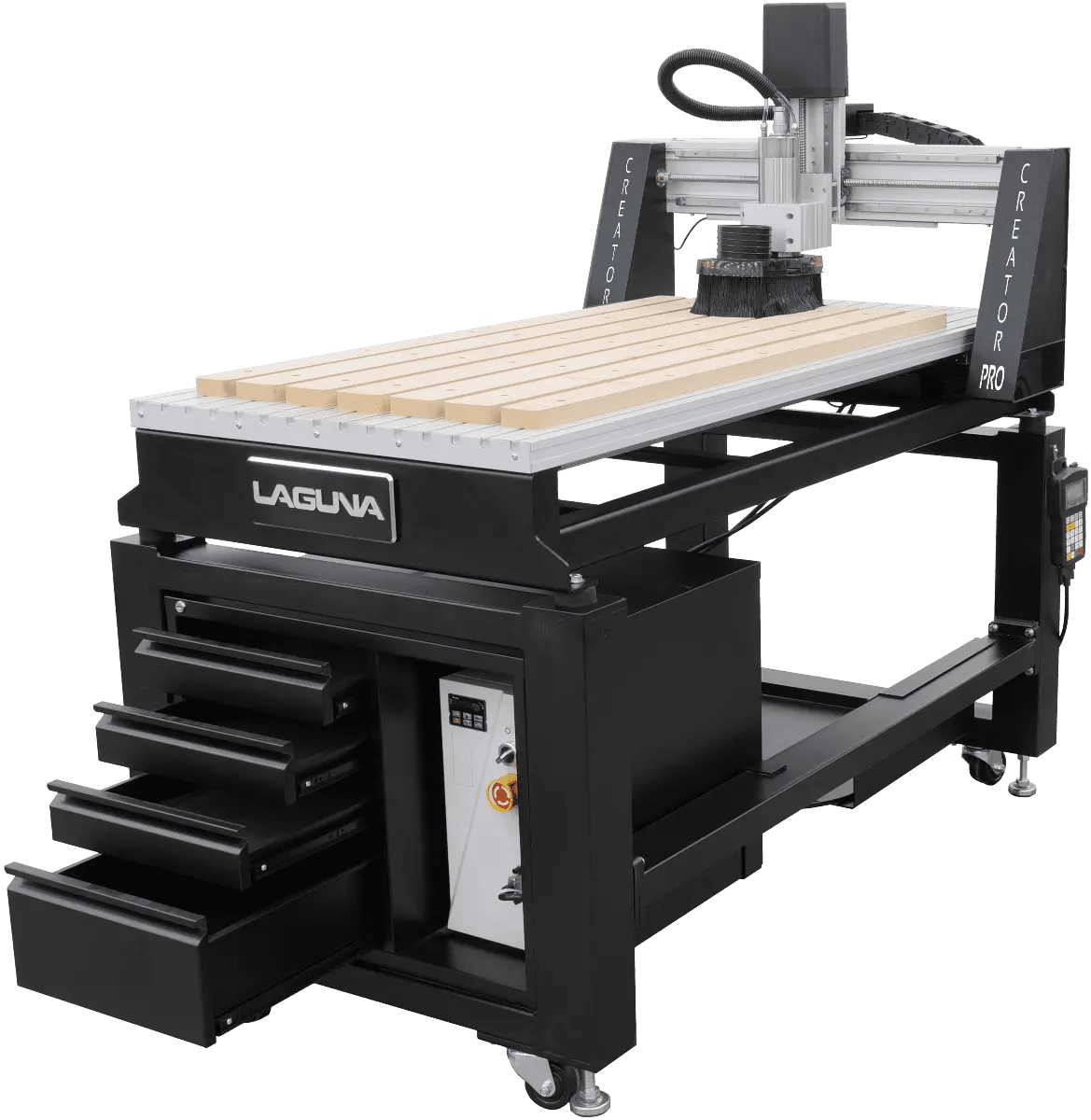

Laguna Creator Pro

Laguna Creator Pro

$8,499.00

SKU MCNC-CREATOR-I-24P Categories , Tags , Brand:

The Laguna Creator Pro offers all of the great features you’ve come to know and love but adds increased holding torque with 48V stepper motors, an improved cooling system, and higher spindle performance thanks to an upgraded VFD.

The updated Creator Pro offers 4-axis capability, powerful electro-spindle performance, and rotary machining capability in a compact industrial machine.

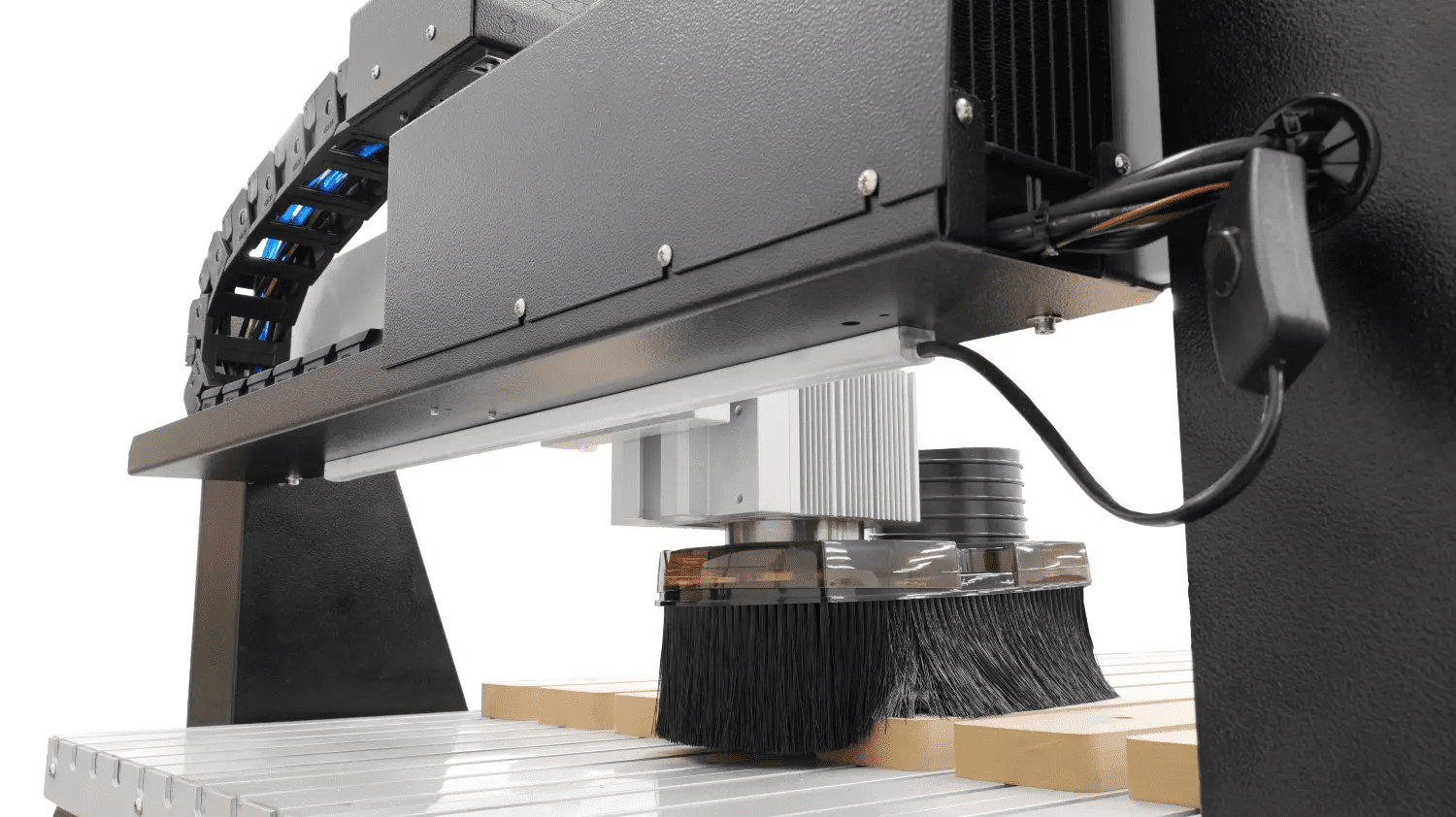

This machine provides a full 6.5″ of gantry clearance and a quiet yet powerful 3HP electro-spindle with an integrated liquid cooling system.

The Laguna Creator Pro also offers precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminum table.

Features:
  • 3HP Liquid Cool Spindle/ ER-20 Collet
  • Prismatic Guides In All Axes

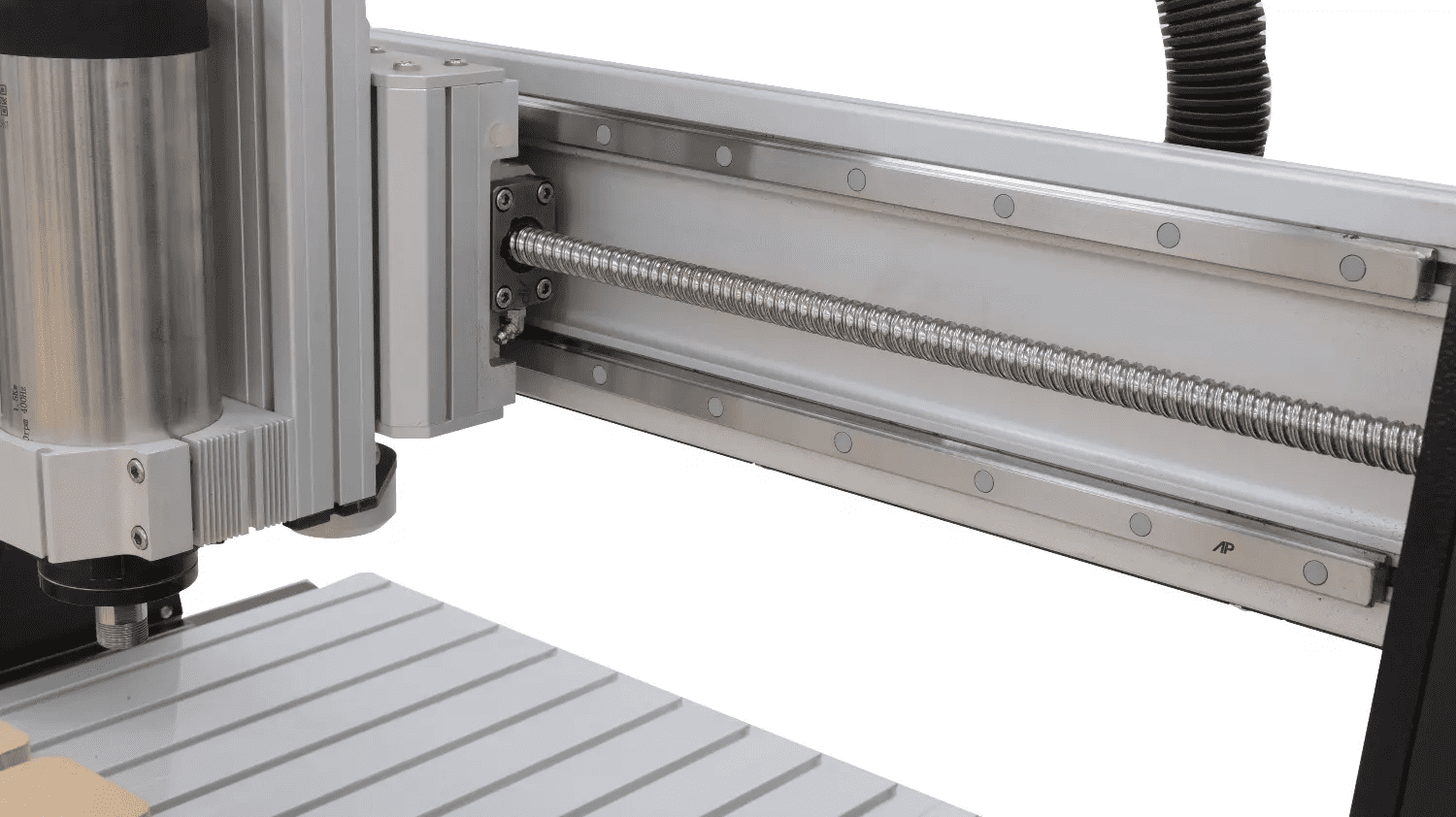

  • Precision Ball Screws In All Axes

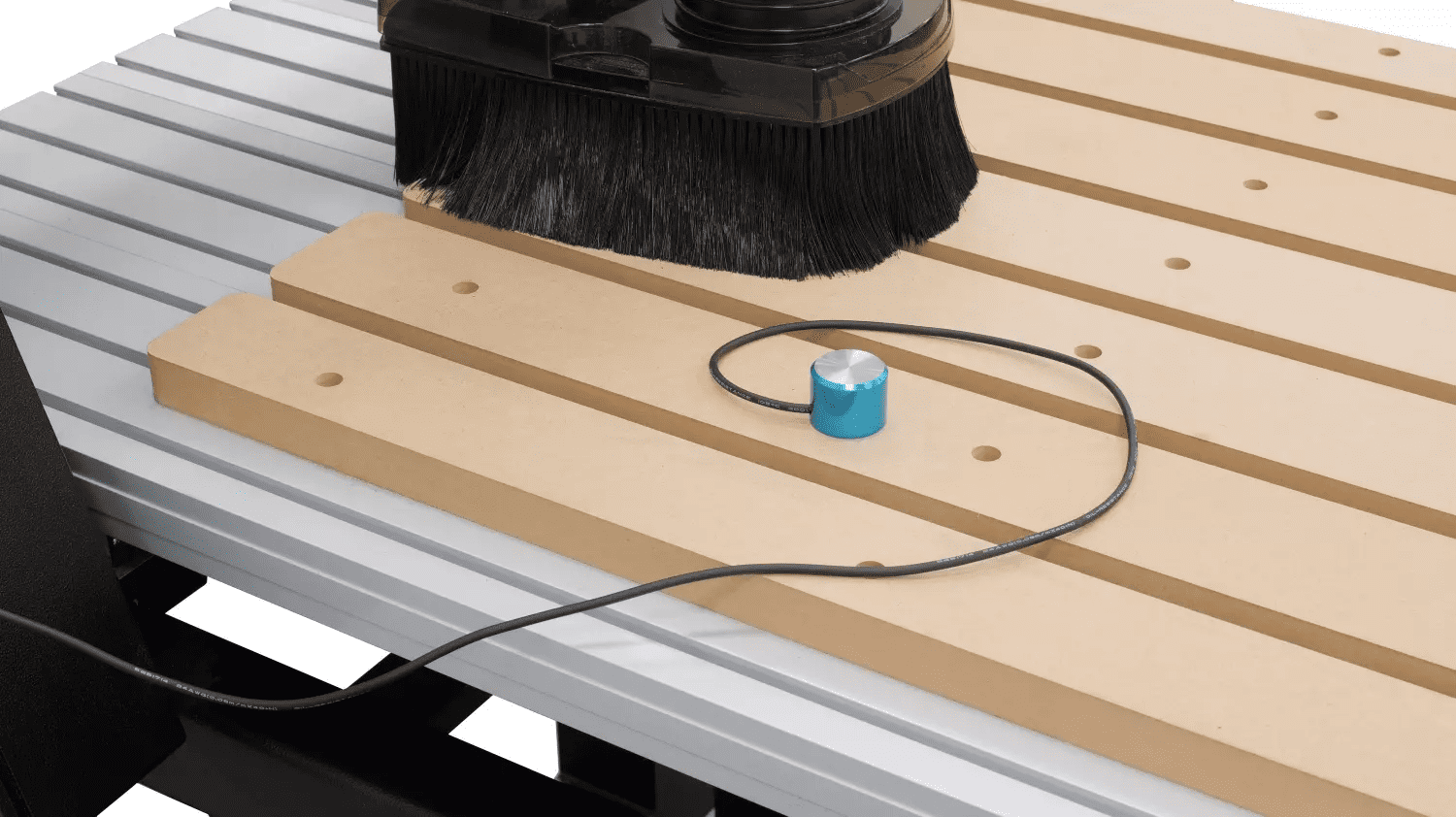

  • Tool Touch Off Puck Included
  • DSP Controller
  • 4th Axis Ready
Add to Quote Request

Parts Included With Machine:

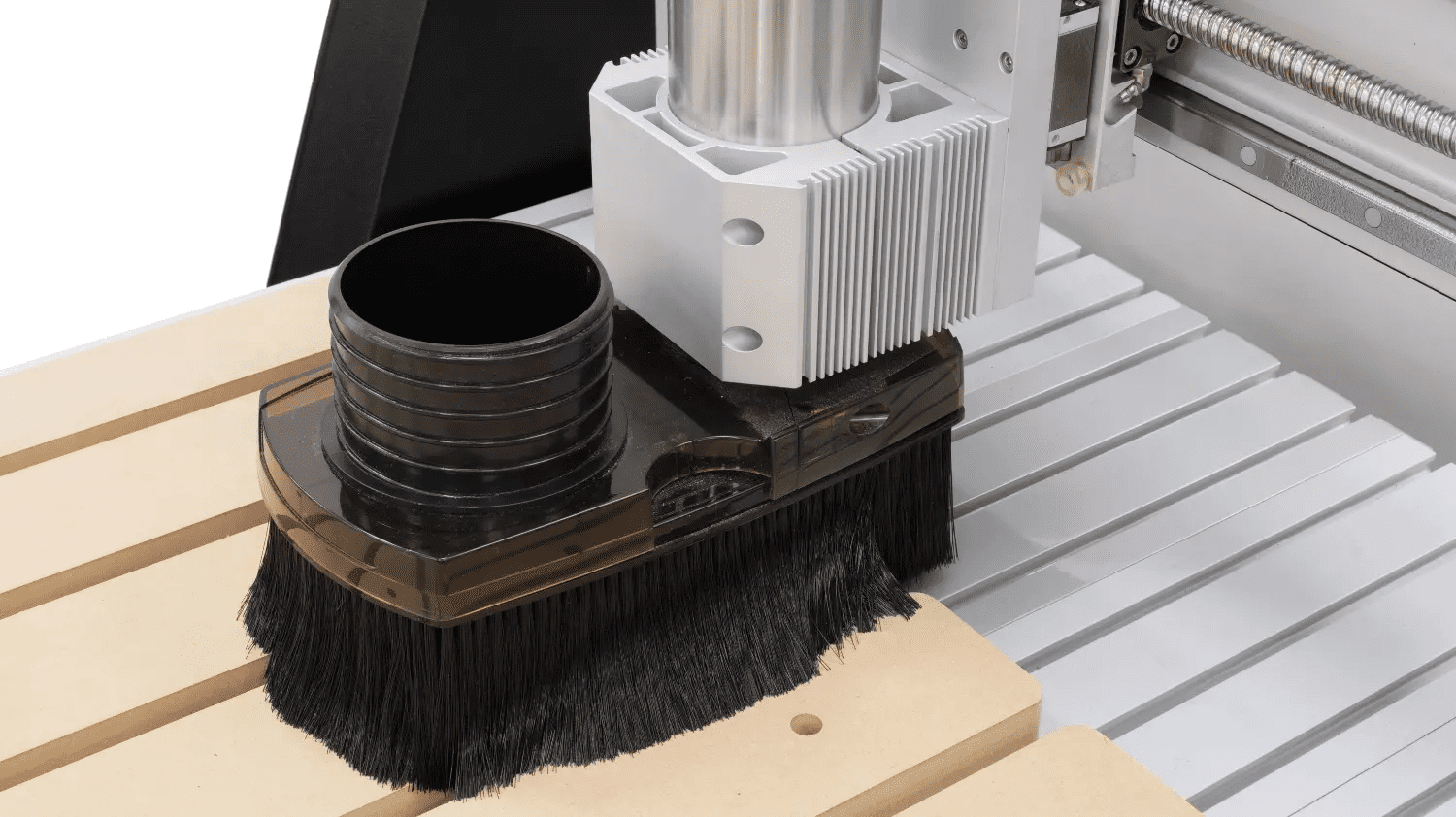

  • Dust Shoe
  • Hold Down Clamp Set (4 Total Clamps)
  • 1/2″ & 1/4″ Collets
  • Collet Wrenches
  • Integrated MDF Spoil Board

X Axis Travel: 24″

Y Axis Travel: 47.63″

Z Axis Travel: 5.9″

C Axis Travel: 360°

Table Work Area: 28.4″ x 63″

Spindle Configuration: ER20

Electro Spindle: 2.2KW (3HP)

Spindle Speed: 0-24000 RPM

Rapid Shuttle Rate: 300 IPM

Precision Linear Guideway: X/Y/Z

Precision Ball Screw: X/Y/Z

Ball Screw Diameter: 16mm

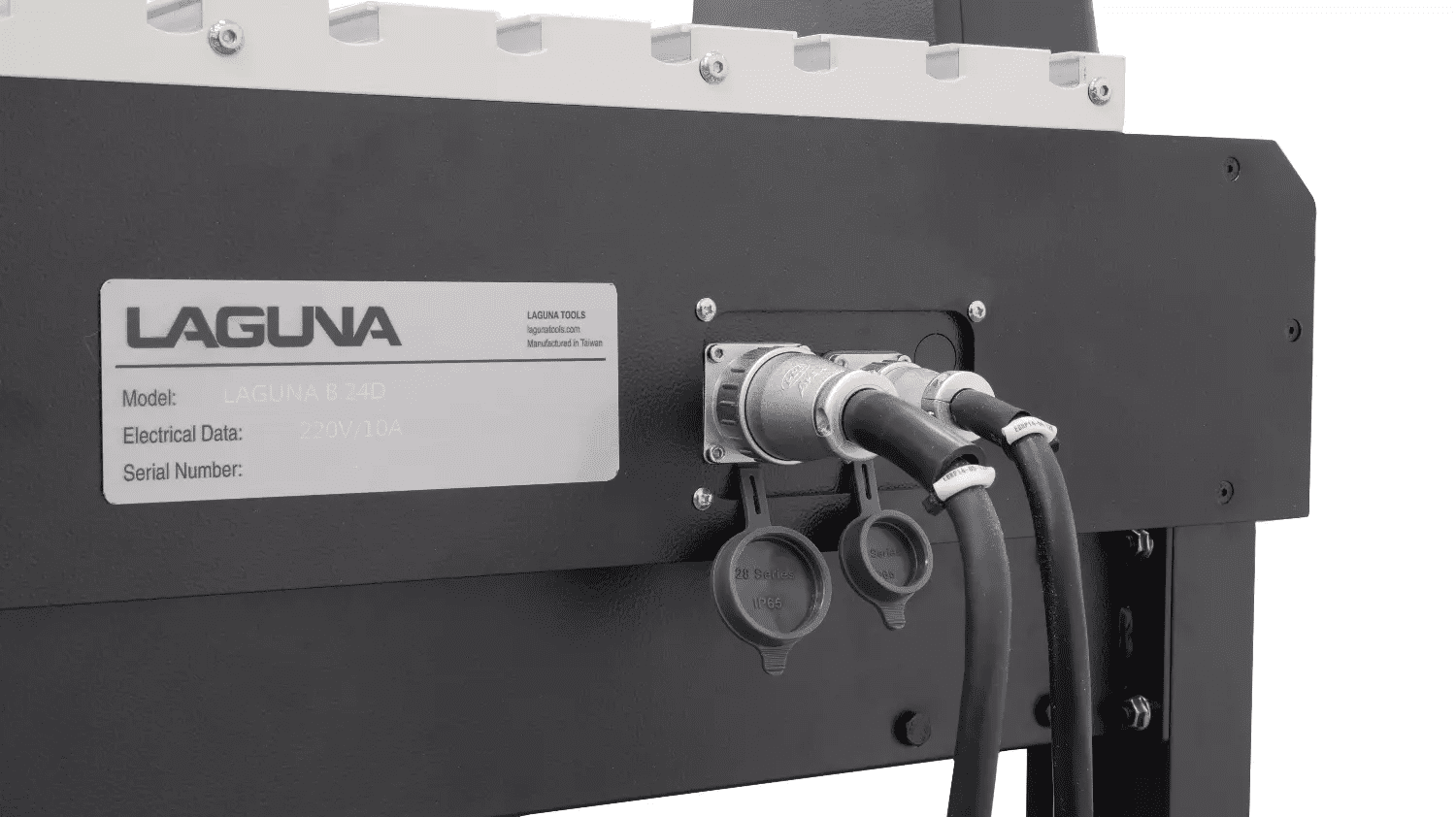

Power Requirements: 220V, 50~60Hz, 10A, 1-Phase

Working Table: High Rigidity Aluminum Extrusion

Positional Accuracy: +/- 0.00393″

Gantry Bridge: High Rigidity Aluminum Extrusion

Gantry Supports: Steel

Max Gantry Clearance: 6-1/2″

Machine Dimensions (L x W x H): 62.99″ x 37.36″ x 30.27″

Shipping Dimensions (L x W x H): 65″ x 39″ x 33″

Machine Weight: 405 lbs.

Tool Touch-Off Device: Included

Onboard Cooling System: Liquid

Controller:

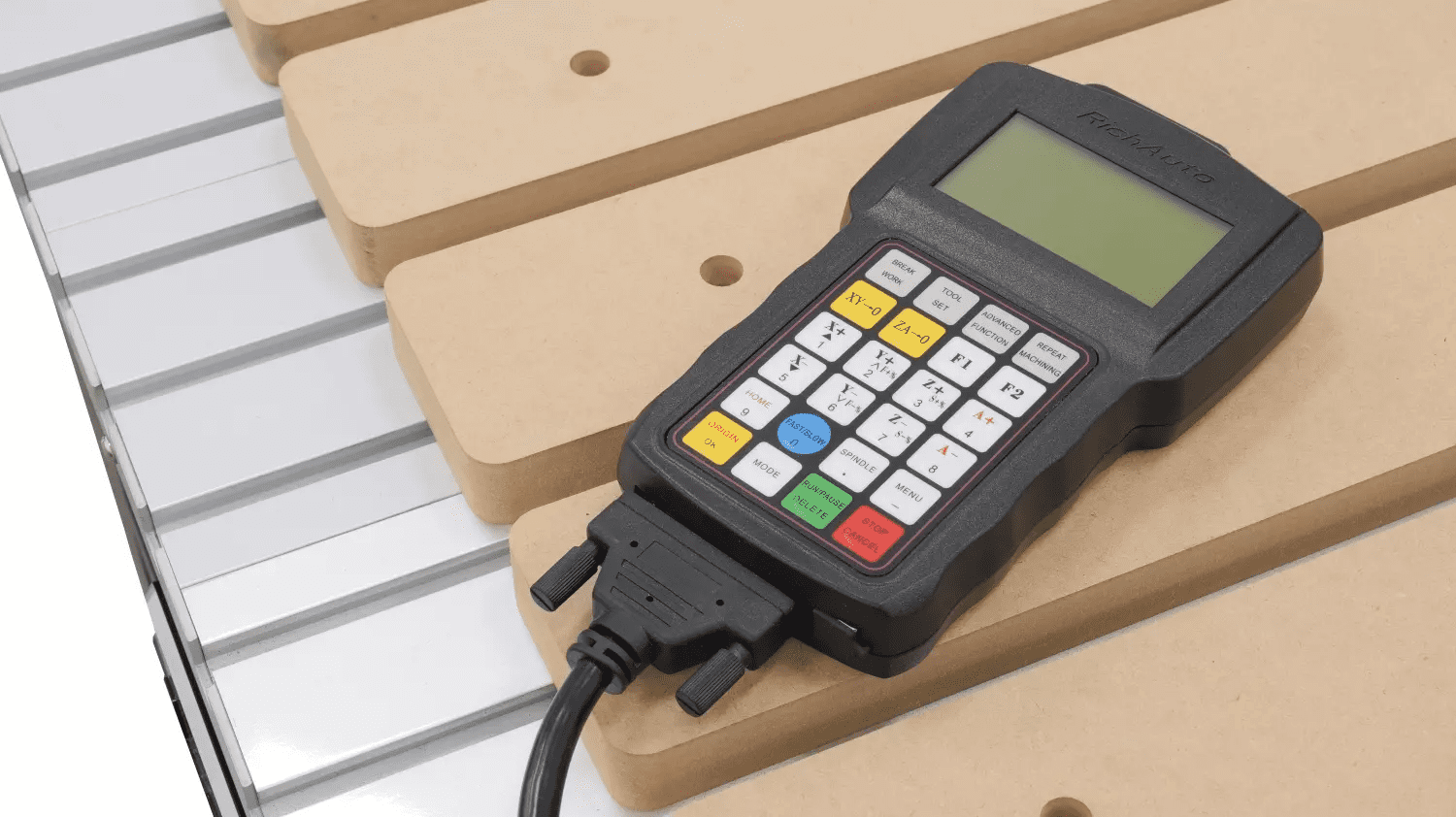

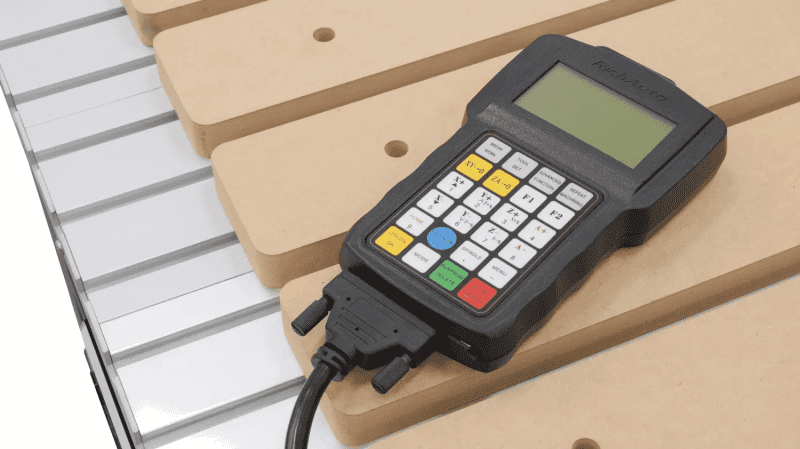

  • RichAuto B18 DSP 4-Axis Controller
  • CNC Motion Control System
  • USB Port For Easy File Transfer (No PC Required)

Applicable Language: Support English / Chinese

CSA Approved: Yes

Warranty: 1 Year

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage Machines nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

Parts Included With Machine:

  • Dust Shoe
  • Hold Down Clamp Set (4 Total Clamps)
  • 1/2″ & 1/4″ Collets
  • Collet Wrenches
  • Integrated MDF Spoil Board

X Axis Travel: 24″

Y Axis Travel: 47.63″

Z Axis Travel: 5.9″

C Axis Travel: 360°

Table Work Area: 28.4″ x 63″

Spindle Configuration: ER20

Electro Spindle: 2.2KW (3HP)

Spindle Speed: 0-24000 RPM

Rapid Shuttle Rate: 300 IPM

Precision Linear Guideway: X/Y/Z

Precision Ball Screw: X/Y/Z

Ball Screw Diameter: 16mm

Power Requirements: 220V, 50~60Hz, 10A, 1-Phase

Working Table: High Rigidity Aluminum Extrusion

Positional Accuracy: +/- 0.00393″

Gantry Bridge: High Rigidity Aluminum Extrusion

Gantry Supports: Steel

Max Gantry Clearance: 6-1/2″

Machine Dimensions (L x W x H): 62.99″ x 37.36″ x 30.27″

Shipping Dimensions (L x W x H): 65″ x 39″ x 33″

Machine Weight: 405 lbs.

Tool Touch-Off Device: Included

Onboard Cooling System: Liquid

Controller:

  • RichAuto B18 DSP 4-Axis Controller
  • CNC Motion Control System
  • USB Port For Easy File Transfer (No PC Required)

Applicable Language: Support English / Chinese

CSA Approved: Yes

Warranty: 1 Year
